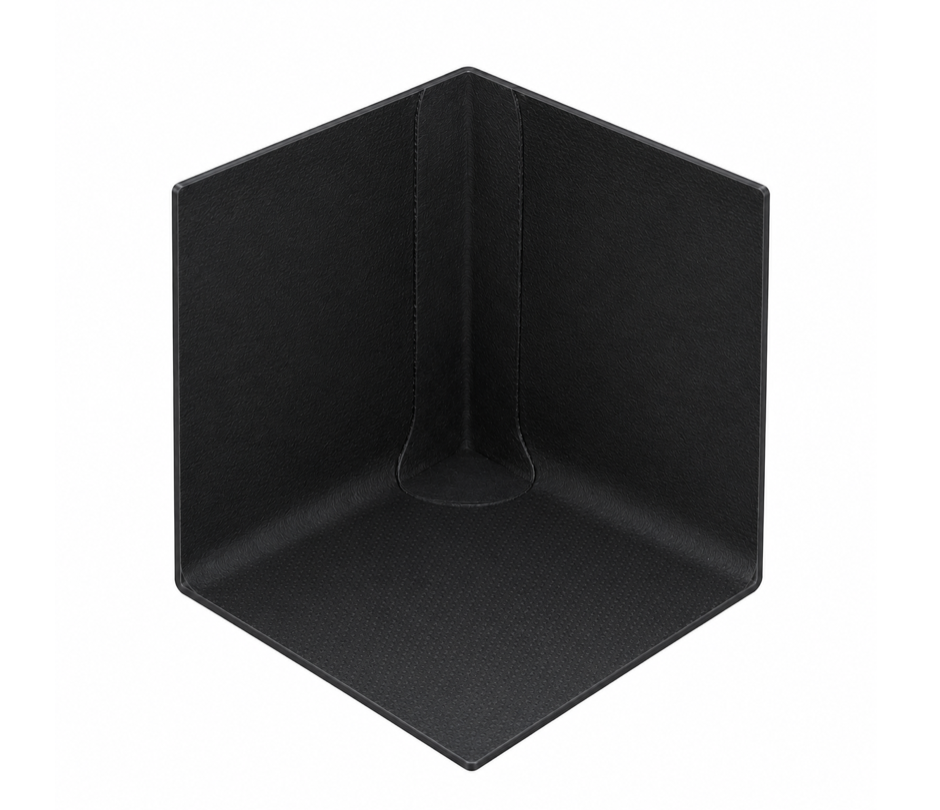

EPDM Pre-Formed Internal Roof Corner 150 × 150 × 200 mm
Large pre-formed 90° internal EPDM roof corner manufactured from flexible 1.2 mm EPDM. Provides extended coverage for waterproofing internal upstands, parapets and flat roof junctions.
Read more
EPDM Pre-Formed Internal Roof Corner is designed for larger 90° internal junctions requiring increased coverage around the adjoining roof surfaces and upstands. The 150 × 150 × 200 mm profile provides a generous bonding area, helping create a dependable waterproof connection at critical roof details.
Its factory-formed shape simplifies installation and reduces the need to cut and fold EPDM membrane into complex internal corners. Flexible 1.2 mm EPDM accommodates normal movement while providing a clean and consistent finish.
Suitable for residential, commercial and industrial flat roofing, the corner can be incorporated into new EPDM installations or used when refurbishing existing compatible roof details. Install using the appropriate EPDM adhesive and sealant.
Key Benefits
- Pre-formed for larger 90° internal corners
- Extended 150 × 150 × 200 mm dimensions
- Generous surface area for secure bonding
- Flexible 1.2 mm EPDM construction
- Simplifies complicated internal corner detailing
- Reduces on-site cutting and folding
- Helps maintain reliable waterproofing
- Suitable for new roofs and refurbishment work
Typical Applications
- Large internal flat roof corners
- Parapet and upstand junctions
- Rooflight kerbs and raised details
- Wall-to-wall internal roof junctions
- Commercial and industrial flat roofs
- Residential extensions and garages
- EPDM roof refurbishment
- New-build EPDM roofing systems
Technical Specification
Product Type: Pre-Formed Internal Roof Corner
Material: EPDM synthetic rubber
Thickness: 1.2 mm

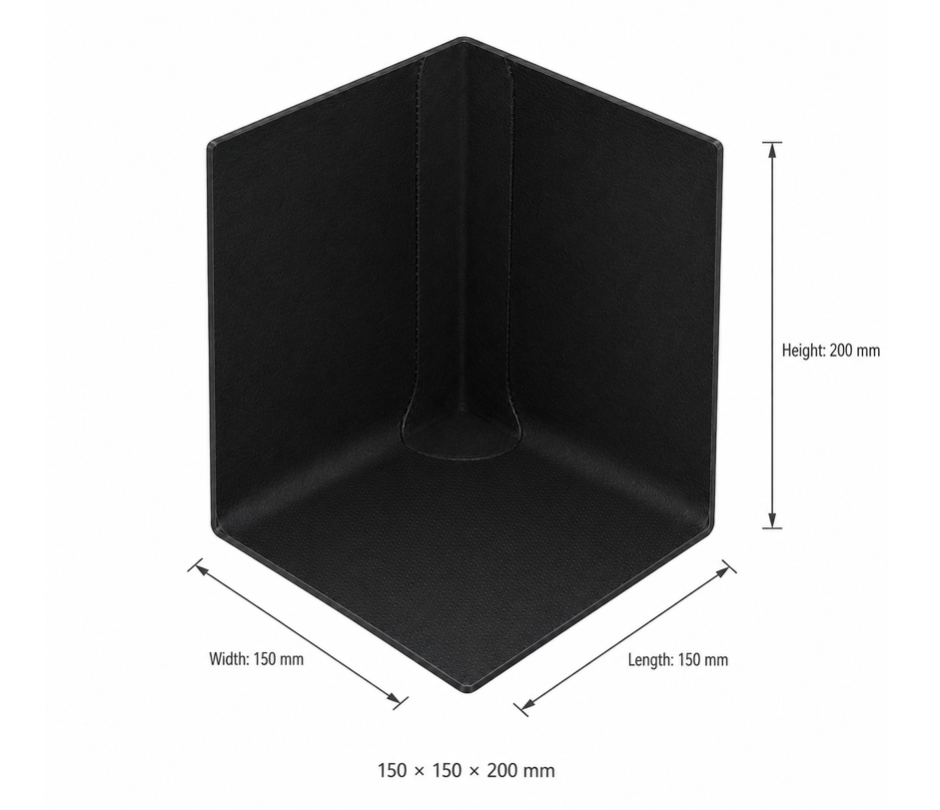

Dimensions: 150 × 150 × 200 mm
Corner Angle: 90°
Corner Type: Internal
Colour: Black
Application: Larger internal EPDM roof junctions
Installation: Compatible EPDM adhesive and sealant
Suitable Roof Type: Flat and low-pitched EPDM roofs
